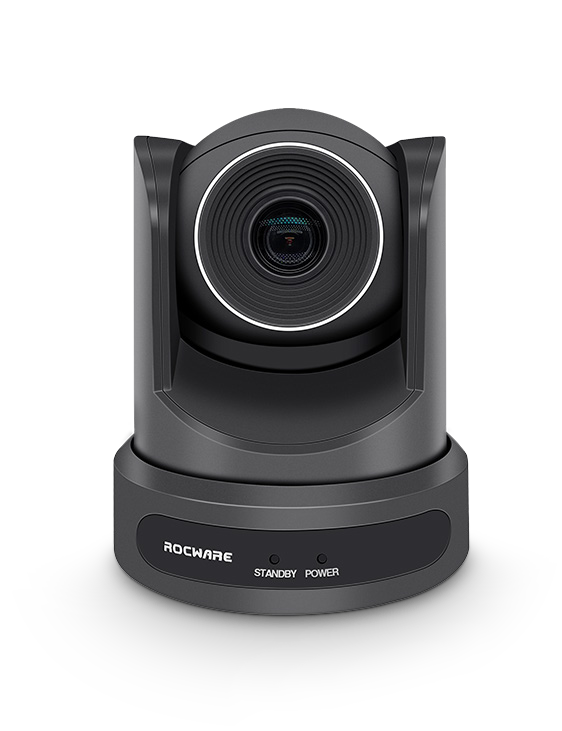

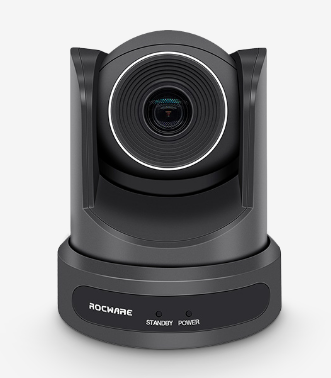

RC20 - HD Video Conference Camera
Crystal-Clear Communication for Smarter Meetings
The Rocware RC20 is a professional-grade HD video conferencing camera designed for seamless collaboration in conference rooms, classrooms, webinars, and remote meetings. Featuring a high-performance CMOS sensor, the RC20 delivers sharp, vibrant, and smooth video—ensuring everyone is seen and heard clearly.
Rocware RC20, Camera Features
Full HD 1080p Video
Bringing stunning clarity to every classroom
✔ Ultra HD resolution for sharp visuals
✔ Anti-glare tempered glass
✔ Wide viewing angles
Wide-Angle Lens
Bringing everyone into the frame
✔ 84° field of view
✔ Perfect for small to medium rooms
✔ Auto framing support
High-Quality Audio Pickup
Bringing clear communication to every meeting
✔ Built-in dual noise-reduction microphones
✔ Echo cancellation technology
✔ Effective pickup up to 6 meters
Plug-and-Play USB Connectivity
Bringing simplicity to every setup
✔ USB 2.0 interface, driver-free
✔ Works instantly with PC, laptop & smart boards
✔ Compatible with Windows, Mac & Linux
Universal Video Conferencing Support
Bringing flexibility to every collaboration
✔ Works with Zoom, Microsoft Teams, Google Meet, Cisco Webex & more
✔ No extra software required
✔ Stable, seamless integration
| Camera | |
| Resolution | 1080P / 720P / 480P etc. |
|---|---|
| Lens | 10x Optical Zoom, f=4.7mm – 47.0mm |
| Low Light Performance | 0.5 Lux (F1.8, AGC ON) |
| Digital Noise Reduction | 2D & 3D DNR |
| Viewing Angle | H: 6.3° – 72.5°, V: 1.7° – 36° |
| Pan/Tilt Range | Pan: ±170°, Tilt: –30° to +90° |
| Pan/Tilt Speed | Pan: 0.1°–60°/s, Tilt: 0.1°–30°/s |
| USB Features | |
| Compatibility | Windows / Mac / Linux / Android |
| Video Format | MJPEG / H.264 up to 1080p @ 30fps |
| Protocol | UVC 1.0, ePTZ Supported |
| Interfaces | |
| USB Interface | USB 2.0 (Type-B Female) |
| Control Port | RS232 (Mini DIN) |
| Power Input | DC 12V or via USB (5V) |
| General | |
| Power Consumption | 12W Max |
| Dimensions | 341mm x 153.1mm x 163.6mm |
| Weight | 1.153 Kg |
