RS Series
Redefine Smarter Collaboration.
Newline RS Series – Interactive Flat Panels
Redefine Smarter Collaboration in Classrooms & Boardrooms
The Newline RS Series is a versatile 4K UHD interactive panel designed to enhance collaboration and boost engagement in both education and business environments. With seamless multi-touch support, built-in software compatibility, and superior connectivity, the RS Series makes teamwork smarter and more intuitive.
Newline RS Series Features
4K UHD Display
Bringing superior clarity to every classroom & meeting
✔ Crystal-clear 4K resolution
✔ Anti-glare tempered glass
✔ Vivid colors with wide viewing angles
20-Point Multi-Touch
Bringing seamless collaboration to every session
✔ Supports multiple users simultaneously
✔ Smooth and natural writing experience
✔ Pen & finger touch recognition

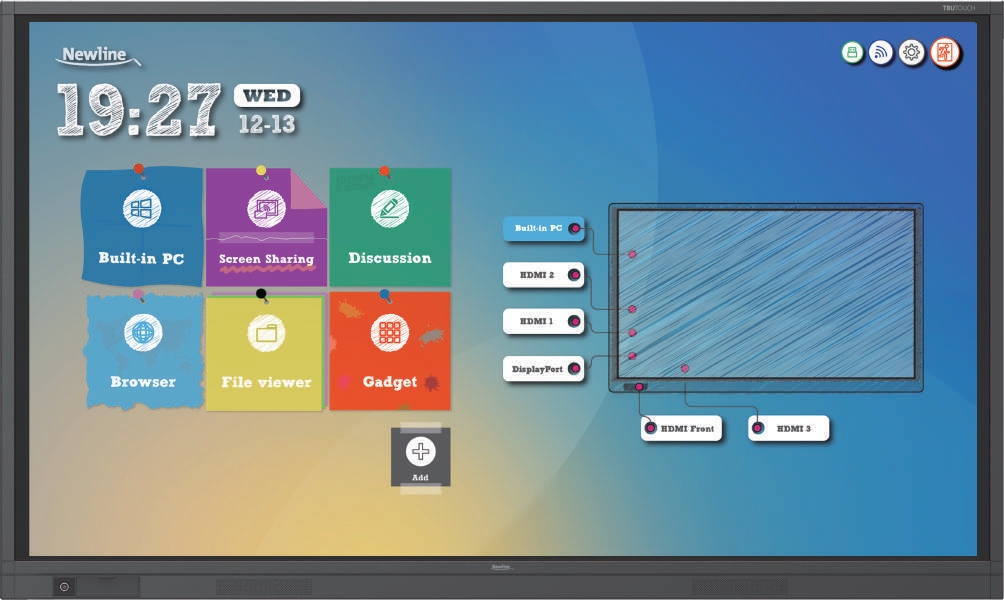

Built-in Android OS with OPS Slot
Bringing smart functionality to every space
✔ Pre-installed Android system with apps
✔ OPS slot for optional Windows PC integration
✔ Flexible and powerful dual-system support
Wireless Screen Sharing
Bringing easy connectivity to every device
✔ Share content wirelessly from Windows, iOS, Android & Chrome
✔ Multi-device casting support
✔ Quick & secure mirroring
Collaboration & Annotation Tools
Bringing interactivity to every presentation
✔ Write, annotate & highlight directly on screen
✔ Save and share notes instantly
✔ Easy erase with gesture recognition
Integrated Audio & Connectivity
Bringing convenience to every classroom & boardroom
✔ High-quality built-in speakers
✔ Multiple HDMI, USB & LAN ports
✔ Works with cameras & conferencing tools
Wireless Presentation
Dual Interface
Resolution 4K@60Hz
Object Recognition
Dynamic USB
PRODUCT SPECIFICATIONS
| Model | TI-6518RS | TI-7518RS | TI-8618RS | TI-9818RS |
|---|---|---|---|---|
| Sizes | 65" | 75" | 86" | 98" |
| Resolution | 3840 x 2160 Pixels (4K) | |||
| Brightness | 370 cd/m² | 370 cd/m² | 370 cd/m² | 500 cd/m² |
| Contrast Ratio | 4000:1 | 4000:1 | 1200:1 | 4000:1 |
| Power Consumption | Max <220W | Max <350W | Max <450W | Max <700W |
| Touch Surface | Anti-Glare Glass | |||
| Touch Surface Hardness | IR Touch | |||
| Touch Points | 20 touch points | |||
| Max. Power Output | 15W x 2 | |||
| Outline Dimension | 1544 x 939 x 99 mm | 1768 x 1066 x 104 mm | 2019 x 1209 x 116 mm | 2256 x 1361 x 106 mm |
| Net Weight | 44 Kg | 57 Kg | 73 Kg | 130 Kg |
| VESA | 600 x 400 mm | 800 x 400 mm | 800 x 400 mm | 800 x 400 mm |
| Wireless Screen Sharing | Available | |||
Compatible with
Windows
Android
Mac OS
ChromeBook
Other features:
Integrated Speakers
Anti-Glare glass
3 year warranty
